Aparna Pumps and Motors is a leading manufacturer and supplier of solar water pumps in Gujarat, offering eco-friendly and energy-efficient solutions for a wide range of applications. Our solar water pumps are designed for industrial use, residential and commercial water supply, and agricultural needs such as drip irrigation and sprinklers. Available in high, medium, and low-pressure variants, our pumps are known for their durability, easy operation, and reliable performance, supported by ethical business practices and responsive customer service.
Our advanced solar submersible pump series is built using state-of-the-art technology and corrosion-resistant materials, making it ideal for solar pumping systems. With high efficiency, low running costs, and long service life, these pumps ensure continuous and trouble-free operation. They are especially suitable for remote areas without electricity, as well as for farms, schools, hospitals, government establishments, and various industrial applications.
Operating Conditions :
- Max. Liquid Temp. - 45°C
- Water ph Value - 6.5-8.0
- Max.Quantity of Sand - 50gm/m³
- Pumped liquid - Clean Water free from solids
- chemically natural & close to
- haracteristics of water.
- Start /Hours - Max.30 at regular interval
PRODUCT SPECIFICATION
| OSP-2,3,5,8 & 14 Series | |
|---|---|
| Pawer Range | 1 – 10 HP |
| Standard as per | NEMA |
| Versions | 230 V & 415 V in 3 Phase. A.C, 50 Hz, DOL / Star |
| Speed | 2880 rpm |
| Discharge Range | 15300 -810000 LPD |
| Head Range | 7 – 100 mtrs. |
| Outlet size | 40, 50, 65, 75 , 100 & 125 mm |
| Degree of protection | IP 68 |
| Max. OD Range | 97.5 – 255 mm |
| Duty | S1 |
| Input Watt Range | 1200 – 9000 Wp |
Material of Construction Pump :
| Discharge Chamber | Stainless Steel |
|---|---|
| Valve Sheet | NBR + Stalnless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Suction inter Connector | Stainless Steel |
| Coupling | Stainless Steel |
| Pump Casing | Stainless Steel |
Material of Construction Motor :
| Upper, Lower Housing & Motor Base | Stainless Steel / Cast Iron |
|---|---|
| Stator Shell | Stainless Steel |
| Shaft | Stainless Steel |
| Journal Bush | Carban Bush / GM bush |
| Thrust Bearing Set | SS 420 and Graphite Carbon |
APPLICATION
• Rural water supply from borewell
• Domestic & agriculture Supply
• Farms & Irrigation.
• Civil & lndustrlal.
• Water supply systems of Government
Introduction solar water pumps in gujarat

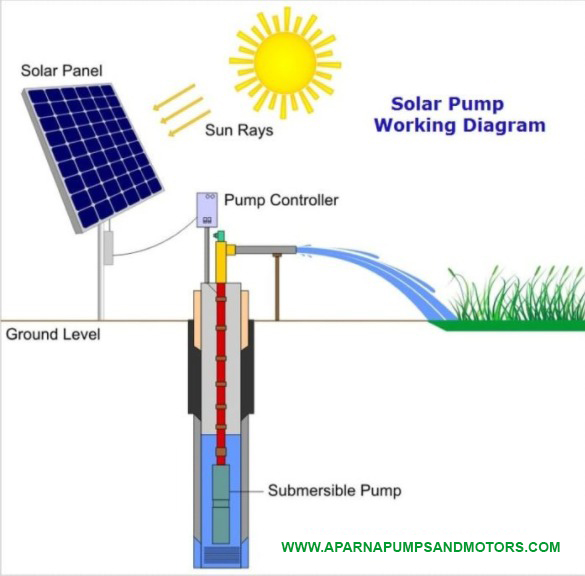

The solar water pump also know as solar pumping system, solar submersible pump or solar pump, a water lifting system powered with electricity generated by solar panel. Solar pump directly connects with solar panel through a mppt solar pump controller. Whenever sunlight drops on solar panel, solar submersible pump starts lifting the water from ground.
There is no electricity required to run this solar pump. Even using solar power pump is more economical where grid electricity is not available. These pumps mostly uses by farmers for irrigation of farming land and horticulture farms. Solar pump can be use for fountain, swimming pool pump, water circulation pump, mono-block home pump and other similar applications.
Major components/parts of a solar water pumping system
- Solar PV panel which generate power
- Controller which controls the system
- Motor pump to lift the water
- Pipes
Types of solar pump
There are many types of solar pump, but only two types are most successful. One is submersible solar pump and another is surface pump. Both pump come in DC and AC technology.
Solar Submersible Pump
Where the depth of water level is more than 15 meter, submersible pump is recommended. This pump keeps inside the water and lift it out. Solar submersible pump is the most selling pump in Gujarat as the depth of water level is very low in maximum areas.
Solar Surface Pump
If the depth of water is less than 15 meter and you want to lift to ground or above the ground level, Solar surface is recommended.
Other Technologies' Solar Pump
We have three technologies to power your solar surface water pump (AC/DC) and solar submersible water pump (AC/DC). The detailed description of technologies is mentioned below:
- Solar pump VFD Drive
- Hybrid Solar PV pump (Solar power + Grid electricity + Battery)
- On grid solar PV pump (With Net Metering)
